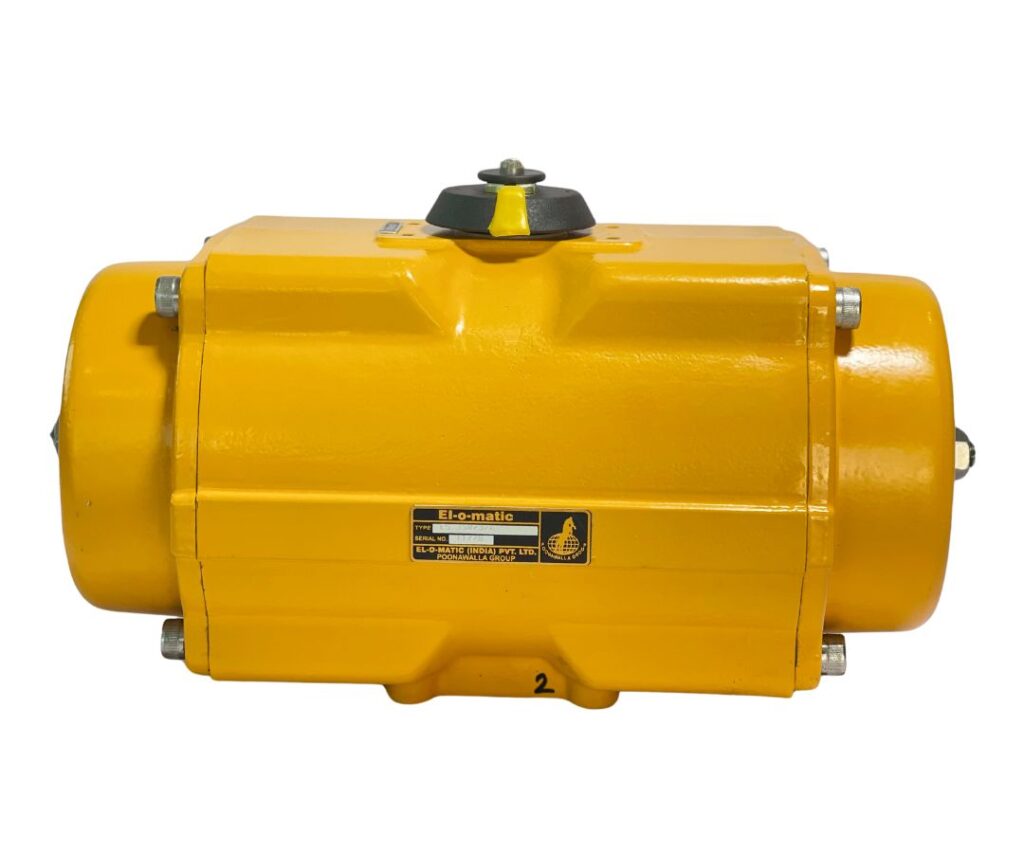

P’ Series actuators cover the large end of the torque range. These all incorporate a body of cast aluminium and have steel for the rack on the pinion drive. Spring return versions have a maximum of 14 springs 7 in each end cap assembled within a hexagon pattern.

• Double Acting Actuator
• Single Acting Actuator
• Actuator with steel housing
• Actuator with 180 Deg. rotation
• Three position Actuator
• Limit stops in the end caps
• Actuator with + 30 or – 30 extra travel
• Pressure – Up to 8 bar
• Temperature – -200 to 800 C
• Media – Air (dry or lubricated) Non-corrosive gas or light hydraulic oil
• Construction – Suitable for indoor or outdoor installation
• Material – Housing – Aluminium Alloy
• Drive Shaft – Carbon Steel
• Finish – Yellow Colour Powder Coated
• Rotation (Standard) – Counterclockwise to open with port ‘A’ pressurised Spring return Actuators air fail to close clockwise
• Movement(Standard) – 91.50 from -0.50 to910 counter-clockwise
• Lubrication – Factory lubricated for the normal life of Actuators
• Life – 5,00,000 operations minimum
