SPC provides a wide offer of industrial strainers, with a particular focus on the Process & oil and gas industry. Our range of filters includes: Y Type Strainers; T Type Strainers; Monobasket Strainers, Conical Strainers, Bug and Bird Screens and more. We can supply our products in a wide range of materials including Carbon steel, WCB, Stainless Steel, Duplex S31803, Super Duplex S32750, Inconel, Hastelloy, Conifer and more. We have engineering and complete fabrication of filters and strainers from 1/2″ up to 82″, series 150lb series 150lb up to 2500lb and thickness up to 75mm, We have our own technical office for the required Engineering and Shop Drawings – Three 3D Autocad Stations available. We provide for Non Destructive Testing, with qualified SNT-TC1A operators for radiographic examination, magnetic particle, liquid penetrant and ultrasonic testing, PMI (Positive Material Identification) and hardness tests. We provide for Post Weld Heat Treatment as required by Codes and Client’s specifications. Bolts tightening is performed with hydraulic-controlled bolt tensioning machines and dynamometric torque wrenches. We have hydrostatic testing equipment, pickling and painting facilities,

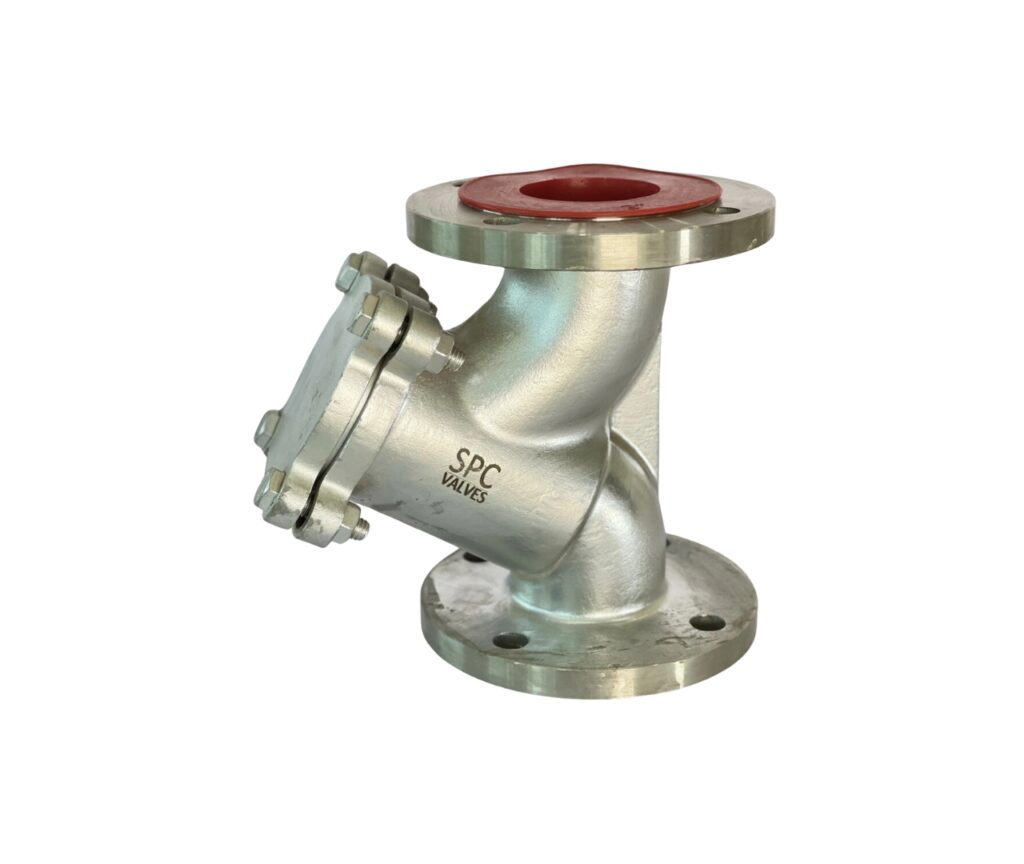

The Y Type Strainer is the most common and economical type of filter for permanent fluid or gas applications. Thanks to its compact construction, its lightweight and its easy access for rapid cleaning, it is used for many generally standard system applications. Permanent filter, straight line, suitable for filtering fluids in either the liquid state (water, seawater, petroleum and its derivatives) or the gaseous state (gas, air, chemical products) through a perforated plate filter element placed perpendicular to the direction of flow. Obtained by casting in sand casts, it is available in all standard materials (Carbon steel WCB Stainless Steel CF8M) and on specific request by the customer in non-standard materials (Duplex S31803, Super Duplex S32750, Inconel, Hastelloy, Conifer, etc.). The standard equipment includes a screen suitable for high pressures, which is easy to maintain and replace and capable of filtration of more than 300% of the inlet area.

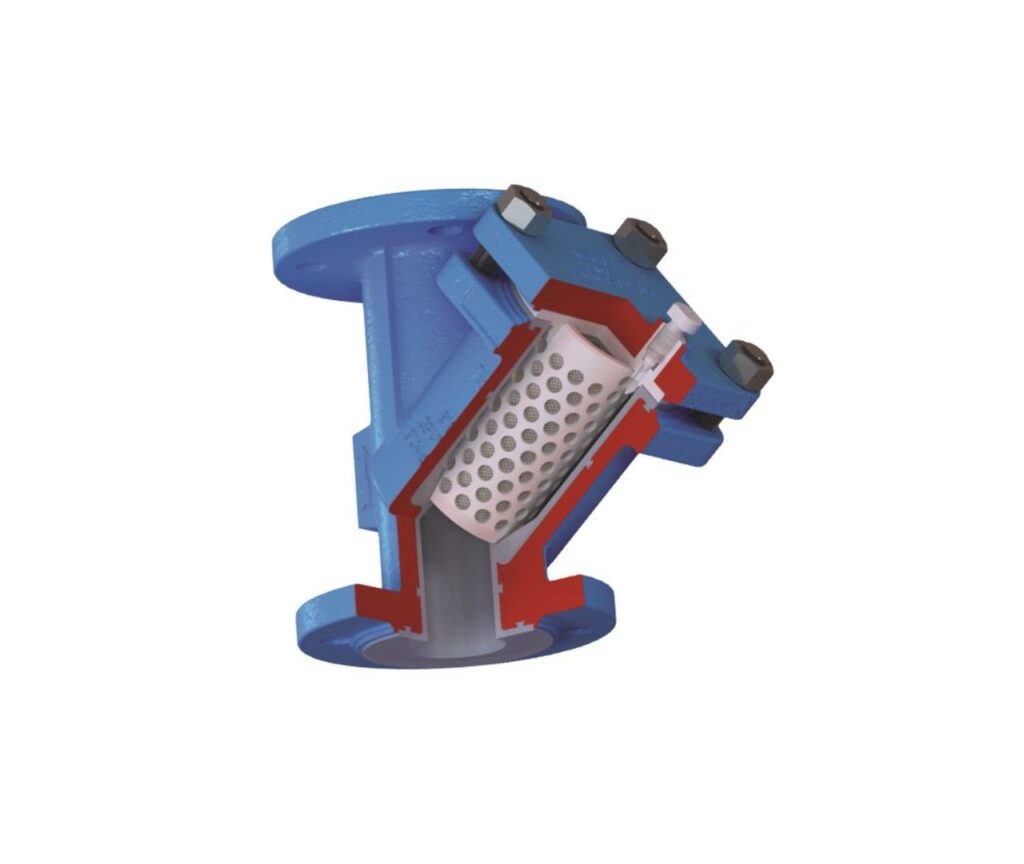

SPC PFA lined strainers meet the highest requirements of the chemical industry where it’s important to ensure high resistance to corrosion under severe working conditions. The PFA heavy-duty lining prevents any damage even if aggressive and permeating fluids circulate inside the strainer. The Y strainers can be installed vertically or horizontally and are suitable for connection with flanges according to DIN EN 1092-1 or ANSI B 16.5 150/300 class.

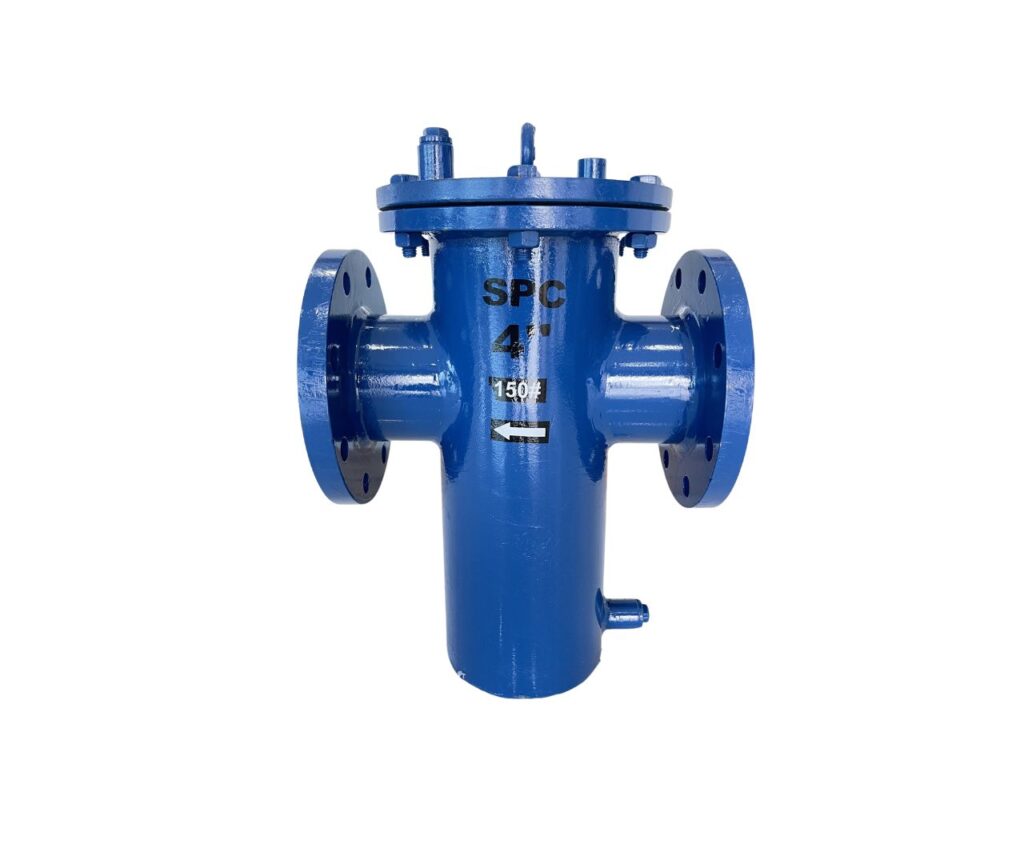

SPC Basket type strainer comes with a Permanent filter type, offering a larger filtering surface area than other filters, ensuring minimal loss of pressure even at high flow speeds. It has a greater capacity for accumulating particulate and is recommended for the low ratio of service periods to maintenance interventions. Comprising a cylindrical body with connecting flanges arranged perpendicularly to the filter element, its filter element consists of a rolled perforated sheet. Filter suitable for high pressures, easy to maintain and replace. The standard equipment includes a screen suitable for high pressures, which is easy to maintain and replace and capable of filtration of more than 300% of the inlet area.

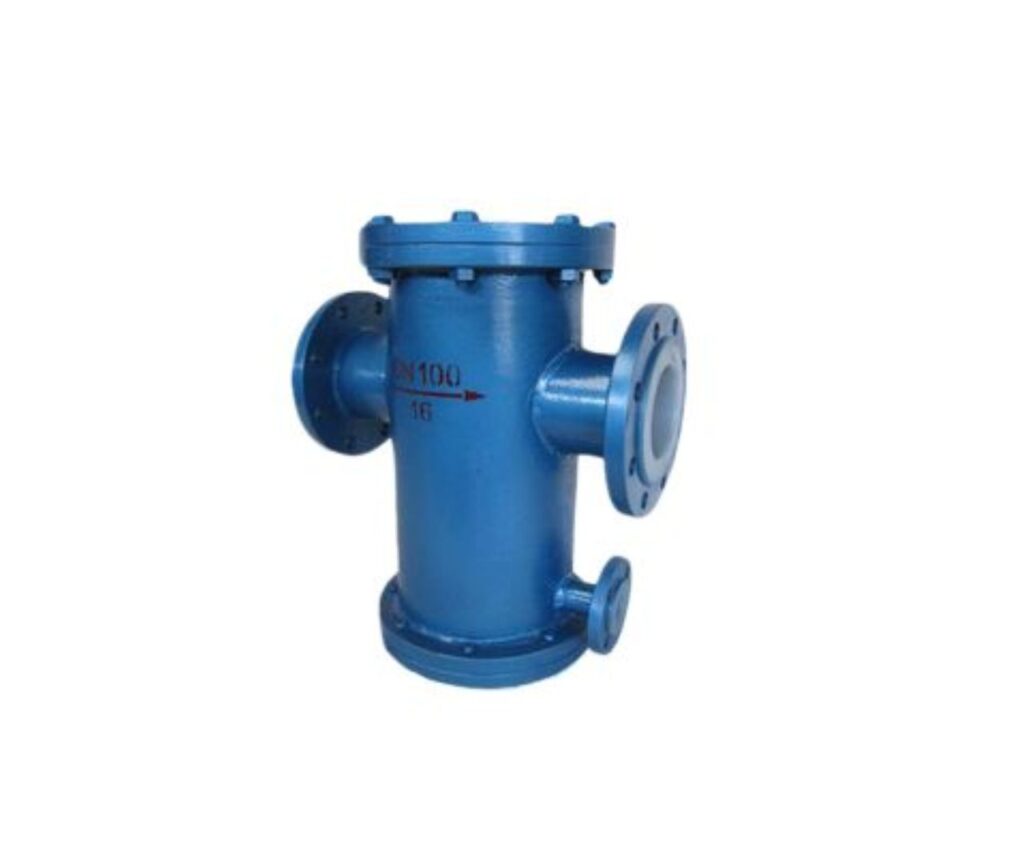

SPC Lined Basket Type Strainers are especially well suited for use in removing suspended solids from extremely corrosive or high-purity fluid streams. They help prevent damage to sensitive downstream process components and equipment,
The PFA-lined strainers meet the highest requirements of the chemical industry where it’s important to ensure high resistance to corrosion under severe working conditions. The PFA heavy-duty lining prevents any damage even if aggressive and permeating fluids circulate inside the strainer. The strainers can be installed vertically or horizontally and are suitable for connection with flanges according to DIN EN 1092-1 or ANSI B 16.5 150/300 class.
